Speciall for high end cabinet door edge banding, with two sets of scraping for filmed panel

Special for high end cabinet door

1. Q Series heavy duty frame

2. Integrated base+ double press beam

3. Full intelligent control system

4. Change dark and light color glue freely

With two sets of glue pots: 2 sets of glue fast melting device+ 2 sets of upper glue pot

Reserved PUR import connection. With an OPTIONAL PUR injector, it will become PUR+EVA two in one glue pot.

5. Suitable for long side of narrow panel

When corner rounding is on, it is perfect for 50x300mm long side.

6. Patent technology: one button switch for panel with/without film scraping

For filmed panel, scraping R1 and R2 are equipped with with/without film scraping options.

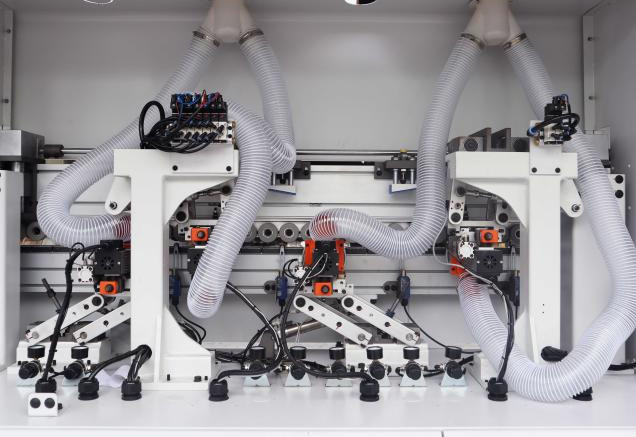

7. Two sets of scraping, special for high end cabinet door

According to the tape thickness to have different R shape, achieving smooth edge.

Cooperating with trimming and buffing to realize perfect effect

R1 for tape thickness 0.4-1.2mm

R2 for tape thickness 1.5-2mm

Two sets of scraping can be switched freely

8. Thick and thin tapes can be switched easily

Rough trimming+ two positions fine trimming+ two sets of scraping R1/ R2. With visible readout, thick and thin tapes can be switched easily which improves efficiency greatly.

9. Four-tool corner rounding
