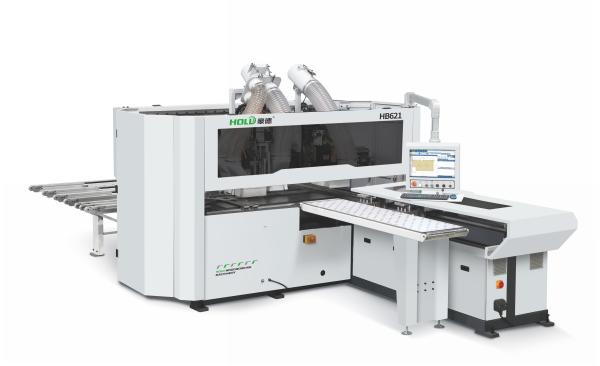

Office Furniture CNC Boring Machine
Machine frame
1. After artificial annealing and aging treatment, long-term use
stability is good.
2. Through the overall precision machining of the large gantry
machining center, the precision is high
Main units

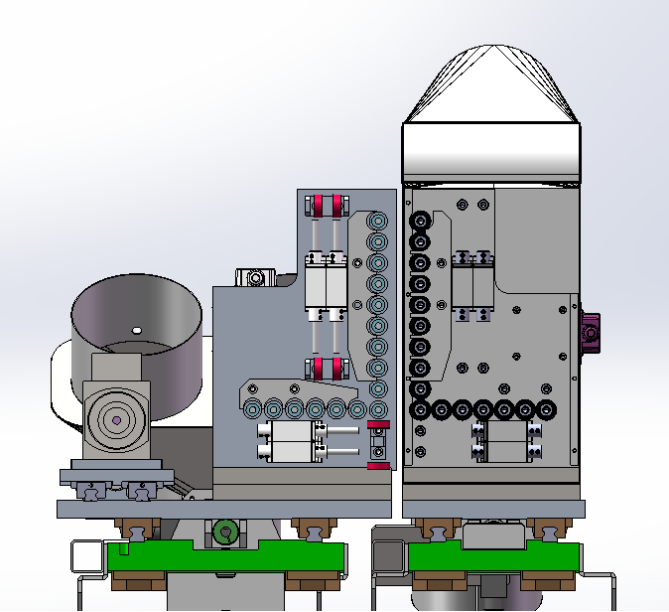

1. There are up to two drilling package and one down drilling
package. With a special design rectangle drilling package the
quantity of vertical drilling bits is increased to 16, and the
reasonable layout improves the working efficiency. The minimum
distance between two drilling packages is 64mm;
2. Minimum panel size: 120 * 30MM;
3. The panel presser of slotting motor adopts linear guide rail
guidance and synchronization, which improves the stability of
pressing;
4. There is an independent floating platform to ensure the accuracy
of drilling.
5. Air floating working platform reduces the touch between panel
and platform, so the surface of the panel is not easy to be
scratched.

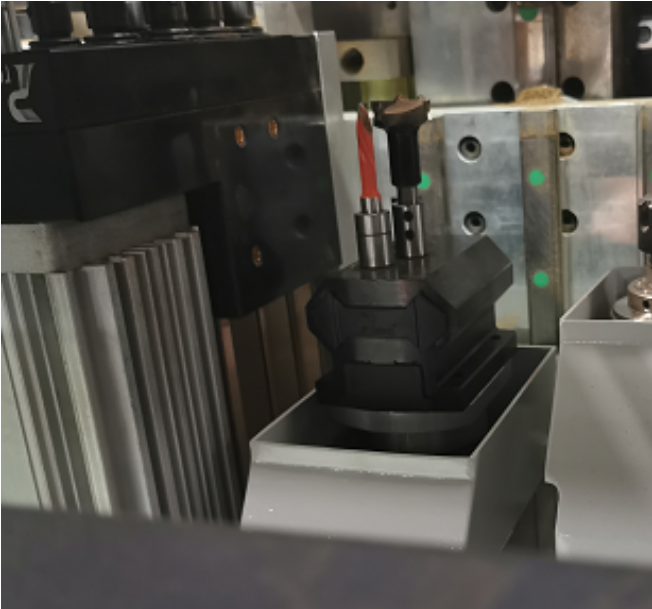

6. The down working unit adds a separate Blum hinge hole drilling
package, which can drill hinge holes perfectly and efficiently;
7. Super large pressure-stabilized gas storage tank makes the
working pressure stabler.
8. The compressed air supercharger keeps the pressure stable and
makes the drilling depth more accurate.
9. Two large pressure shoes, increase the pressure stability, make
the drill hole more accurate.
10. The intelligent side leaning system can automatically measure
the width of the panel and correct the error of panel placement in
time.
11. The intelligent measuring device can automatically measure the
length of the panel to prevent the error caused by the wrong label.
CNC drill package is produced by Taiwan Puten(HOLD brand)
Milling cutter can process width 0-1200mm
Drilling pack Y1 can process width 0-1140mm
Drilling pack Y2 can process width 0-1200mm
| Up drilling unit | Down drilling unit |
| Horizontal drilling head | 2*8 | Horizontal drilling head | 0 |
| Vertical drilling head | 2*16 | Vertical drilling head | 9 |
| Milling cutter | 1 | Milling cutter | 1 |
BLUM hinge drilling unit
Scanning System
Supporting code scanning, it can automatically load processing
graphics files and NC programs for processing. It seamlessly
connects with domestic and foreign design software.

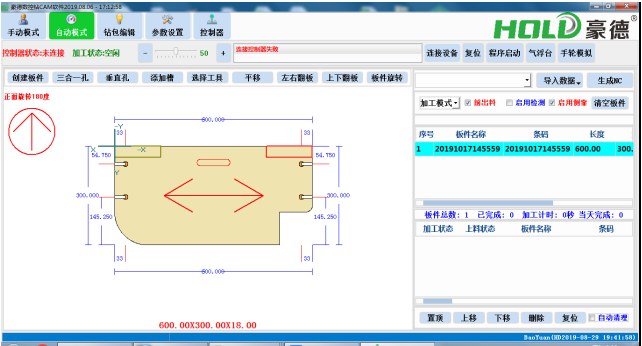

Operation interface
The Windows-based operating software is powerful, easy to operate
and use.
Air floating loading platform
Steel ball air floating table, it is easy to load materials, and
avoiding panel scratches.
Air floating the main platform
It can avoid the touch between panel and platform, so the panel
will not be scratched.
Independent floating support platform
The floating unit supports the processing panel, so the panel is
evenly stressed to ensure processing accuracy.
Intelligent side leaning
Measuring the panel width automatically can prevent wrong panel
processing in time.
Double linkage gripper (optional with blowing device)
Two grippers are controlled by servo and the positioning is
accurate. When the gripper moves quickly, the lower gripper plate
sinks to avoid touching the panel.
Optional: The gripper has an optional blowing function, which can
blow off the dust on the gripper and avoid pinching the panel.
Super large pressure-stabilized gas storage tank
It makes the working pressure stabler.
Compressed air supercharger
Keep the pressure stable to make the drilling depth more accurate.
Large pressure shoes
It can increase the stability of pressing material and make the
drill hole more accurate.
Linear guide and synchronization
The panel presser of the slotting motor adopts linear guide rail
guidance and synchronization, which improves the stability of
pressing.

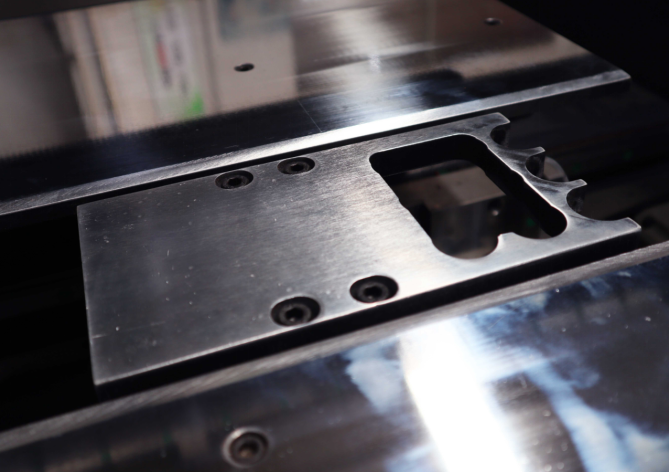

Precision guide rail
The mounting surface of the guide rail is processed on a
large-scale gantry machining center and punched by numerical
control, with high precision and strong load-bearing capacity,
which can better ensure running stability during high-speed
machining.
High precision rack and pinion
2M rack has a large specification, large contact surface, strong
load-bearing capacity, and stable transmission.
Automatic lubrication system
Adjustable automatic lubrication extends the service life of the
equipment.

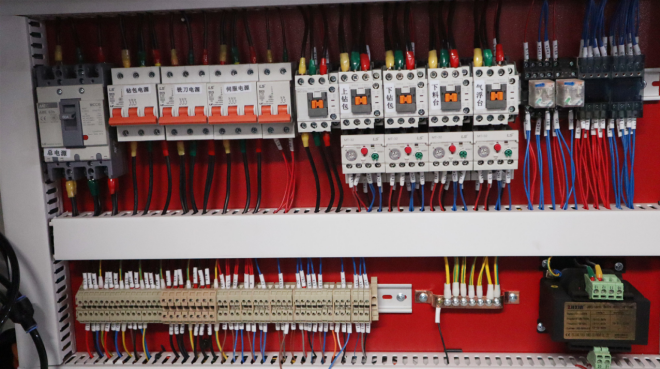

Electric control system
The low-voltage electrical equipment is selected from South Korea's
LS brand, which has a strong anti-interference ability and ensures
smoother and stabler operation of the equipment.
Servo control system
High-performance bus servo drive, with absolute value motor, has a
strong anti-interference ability. There is no need to go back to
the base point, which avoids the precision error caused by
interference of the base point switch.
