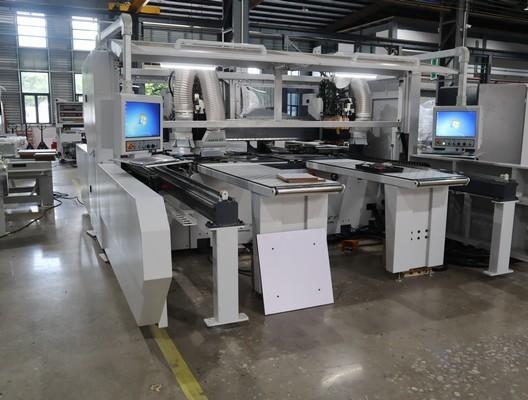

Double Workstation Six-Side CNC Boring Machine For Cabinet
Furniture Factory
Model | HB622P |
Control system | BAOYUAN MW2560PC+3D CAM |
Drive system | Servo driver |
Collect type | ER25 |
Spindle speed | 18000r/min |
Panel length | 200~2440mm |
Panel width | 50~1220mm |
Panel thickness | 10~50mm |
Empty moving speed(X/U/Y/Z) | 120/120/75/30m/min |
Total power | 46KW |
Spindle power | 3.5KW×2 |
Spindle speed | 18000r/min |
UP Horizontal drill | X:2×4 Y:2×2 |
UP Vertical drill | 50 |
Bottom Vertical drill | 16 |
Drilling speed | 4000r/min |
Working pressure | 0.6-0.8MPA |
Voltage | 380V/50HZ 3phase |
Dimension(L*W*H) | |
Weight (KG): | 6000kg |
Fixed position: | Auto |
Side leaning: | Auto |
Working table | Air Floating table |
The system is intelligent and efficient by scanning code to
identify processing information
The equipment adopts double clamp feeding, the maximum speed of
material grabbing can reach 130m / min, and the clamping position
can be automatically adjusted according to the length of the plate.
Through the matching of the drill bag and the spindle, it can
realize the diversified processing of six side drilling, six side
slotting, side pull lamp slot, six side lamino slot invisible
parts, processing through holes, milling special-shaped parts, etc.
With rotary line processing, improve work efficiency
Full automatic CNC system, through the power conveyor automatically
transmitted to the six side drill, can automatically position,
automatic processing, automatic discharge, just a worker or through
the mechanical arm sorting can be
Equipped with air floating table and air floating pressure plate,
air layer is formed on the upper and lower surface of the plate
during processing, which improves the conveying efficiency of the
plate and avoids scratching the plate; The pressure plate drilling
is completed at the same time to ensure the drilling accuracy and
efficiency
Product Manual The pass-through CNC six-sided drill is special
equipment for processing holes in panel furniture; the pass-through
CNC six-sided drill can be connected to the electronic cutting saw
and the CNC cutting machine, and the automatic cutting machine with
automatic labeling can realize intelligent production.
Artifacts six sides drilling
Front and back card slot
Automatic scan code docking pipeline
Compatible with XML, MPR, etc
Teardown software seamless docking
Scan bar code without programming
Product video
About our company
One-stop solution for
interior furniture equipment and wooden door equipment
HOLD Machinery was founded in 2004, focusing on the development of
a full range of furniture machinery equipment and wooden door
machinery and equipment, providing furniture and wooden door
enterprises with solutions for whole factory planning and
automatical production lines, providing customers with excellent
quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door
enterprises in more than 40 countries and regions around the world
and has won wide admiration from customers.
FAQ:
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has
many options such as voltage, speed, function, and so on, So it's
hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months.
For the customized model, the delivery time is around 2~3 months.
It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a
competitive price. Welcome to visit our factory at any time.
