Sliding Table Saw, 45°~90°Saw Blade Angle adjustment range, Table Saw For Woodworking, Woodworking table Saw
Features
1. It is used for cross-cutting of various kinds of wood-based panels,
such as veneers, particleboards, fiberboards, plywood, and solid
wood panels, aluminum alloys, plexiglass panels, etc.
2. Slide track structure
3. The bulldozer is a brave bulldozer. The same supplier as SCM
uses high-density aluminum alloy profiles.
4. All bearing parts are thicker.
5. It has the characteristics of high precision, high strength, and
no distortion after precision processing. The
sliding platform adopts the structure of a circular rod guide rail
and passes through the chute.
6. Fire treatment and surface chromium plating treatment, promote
smooth, low resistance, labor-saving
operation. The sliding platform runs smoothly in the course of
driving, and the saw runs smoothly.
7. The sheet keeps precise parallelism, which ensures the
high-precision cutting of sheet metal. The push table is equipped
with step locks, which can be locked and operated at any time.
Technical Specifications
| Model | MJ320DK | Model | MJ320DK |
| Sliding table length | 3200mm | Main saw spindle speed | 4200r/min |
Max. working height | 90mm | Scoring saw spindle speed | 8500r/min |
| Max. main saw blade diameter | 350mm | Main saw motor power | 5.5kw |
| Scoring saw blade diameter | 120x20mm | Scoring saw motor power | 0.75kw |
| Total power | 6.35kw | | |
Configuration description
High-performance touch screen
The interface is clear and easy to operate.
Operation control system

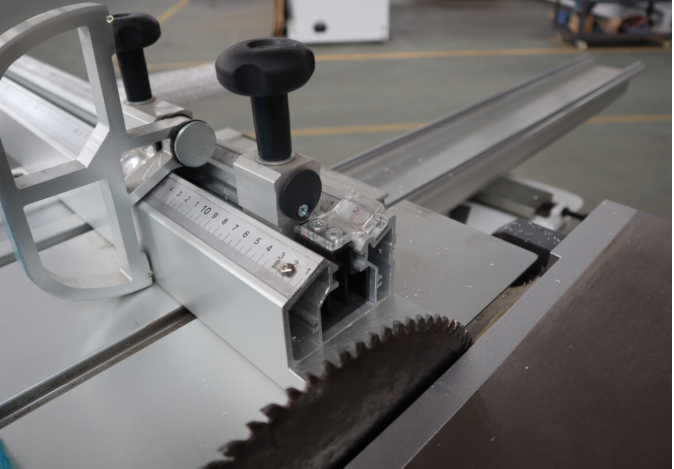

European style horizontal guiding ruler
Stable without displacement, effectively ensure the precision of
the plate cutting process.
Aluminum alloy medium scale
It is made of high-strength extruded aluminum alloy, which has
strong stability and high precision.
Double saw blade design + high-speed motor
Double saw blade: the small saw is responsible for marking, and the
big saw is responsible for cutting so that the cutting plate will
not produce the phenomenon of edge collapse and burr.
High-speed motor: 5.5kW and 0.75KW motor, strong power, long
service life.
Check the video about the machines
About our company
One-stop solution for interior furniture equipment and wooden door
equipment
HOLD Machinery was founded in 2004, focusing on the development of
a full range of furniture machinery equipment and wooden door
machinery and equipment, providing furniture and wooden door
enterprises with solutions for whole factory planning and
automatical production lines, providing customers with excellent
quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door
enterprises in more than 40 countries and regions around the world
and has won wide admiration from customers.
FAQ:
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has
many options such as voltage, speed, function, and so on, So it's
hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months.
For the customized model, the delivery time is around 2~3 months.
It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a
competitive price. Welcome to visit our factory at any time.
