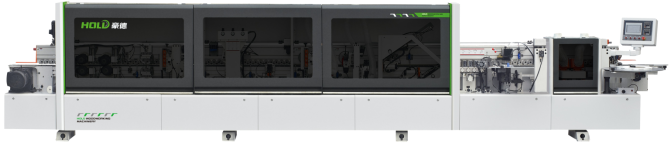

Narrow panel edge bander
It is an edge bander for customized furniture companies, especially
for machining narrow panels with a width of 35mm-60mm. It can
replace the manual processing mode of narrow panels, solving the
problem of narrow panel edge banding in factories.
The equipment adopts PUR gluing system. The PUR gluing perfectly
solves the traditional "glue line" problem of edge banding. The
gluing layer is thinner, the glue line more delicate, the adhesion
effect and the edge banding effect better.
1. For the narrow end of the workpiece, the specially designed
pre-milling mechanism can mill the end of the narrow panel ≥45mm.
2. Auxiliary feeding of narrow side end: It is specially equipped
for narrow-side ends edge banding. The feeding will not be
off-track, and the feeding will be convenient, safe, and efficient.
3. Narrow side automatic side pressing device: Specially equipped
for long panels with narrow side edge banding. The feeding will not
be off-track, and the feeding will be fast and safe.
4. Electric press beam lifting reduces labor intensity and improves
efficiency and accuracy.
5. PUR gluing system: The glue layer is thinner and the edge
banding effect is more delicate, which perfectly solves the
traditional edge banding "glue line" problem. The fast glue
discharge function makes you worry-free when using PUR glue.
6. Four pressing wheels with the enlarged diameter and four air
cylinders ensure that the edge band is tightly pressed on the
workpiece;
7. Conveyor reducer adopts a high-efficiency harden gear reducer,
which is powerful.
8. Equipped with cleaning device and separation device.
Technical Parameters
Model | HD626JP | Model | HD626JP |
Lifting | Electric lifting | Panel thickness | 10-60mm |
Total power | 15.5kw | Edge thickness | 0.4-3mm |
Machine size | 7275x900x1700mm | Working pressure | 0.6Mpa |
Feed speed | 14-20-23m/min | Min.panel size | 300mm*45mm |
Narrow end width ≥45mm. Machining with the single pre-milling
cutter, it can machine width ≥45mm.
Configuration instructions
 | Control System
1-Current and voltage display 2-Banding with pre-delivery function 3-IO intelligent monitoring 4-Inverter fault code display 5-Automatic counting of edge banding 6-Inverter intelligent monitoring 7-Friendly smart interface |
 | Auxiliary feeding of narrow side end
It is specially equipped for narrow-side ends edge banding. The
feeding will not be off-track, and the feeding will be convenient,
safe, and efficient. |
 | Automatic side pressing device
Specially equipped for the long side with narrow side edge banding.
The feeding will not be off-track, and the feeding is convenient
and safe.
|
 | Electrical beam lifting
Touch screen control eliminates the trouble of manual height
adjustment. |
 | Pre-milling
It can be controlled independently, and can mill ≥45mm panels; After milling by the milling mechanism, various defects on the
machined surface can be removed, and the edge banding can reach the
best condition. |
 | Separation device
It has the function of separation and solves the problem of glue
contaminating the board surfaces. |
 | Heating unit
When the temperature is low, heat the surface where glue is
attached before gluing so that the glue will be attached securely
and edge banding will be optimal. |
 | PUR gluing unit
The glue layer is thinner and the edge banding effect is more
delicate, which perfectly solves the traditional edge banding "glue
line" problem. The fast glue discharge function makes you worry-free when using
PUR glue. |
 | PUR glue injection machine (20KG) (optional)
Ensure that the PUR glue is melted in advance during high-speed
operation, and the glue is supplied in time. |
 | Glue removal unit
Strong pressing force, fit edge banding, removing residual hot melt
adhesive on board to minimize glue thread and make edge banding
optimal. |
 | Rubber-coating auxiliary roller
It does not damage the surface of the board. The narrow board runs
stably on the conveyor belt, and the edge banding is stable. |
 | A small press wheel with a diameter of 38mm is adopted to realize
the three-point compression for the narrow panels, which makes the
feeding of narrow panels stabler and improves the quality of edge
banding. |
 |
End cutting
Quickly cut the front and back edge banding. The two saw blades are
matched back and forth to achieve high precision and high
efficiency.
|

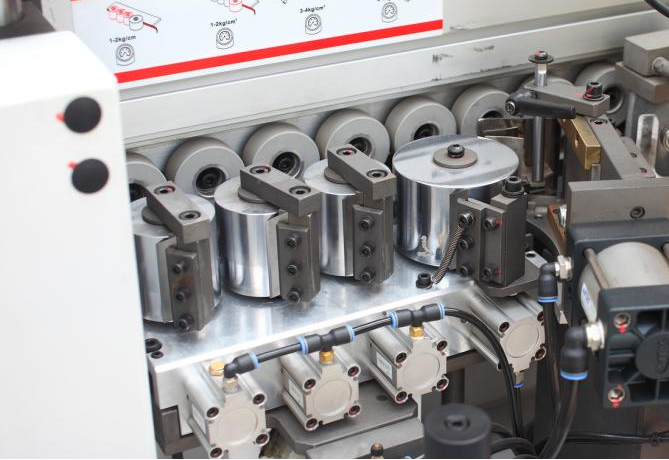

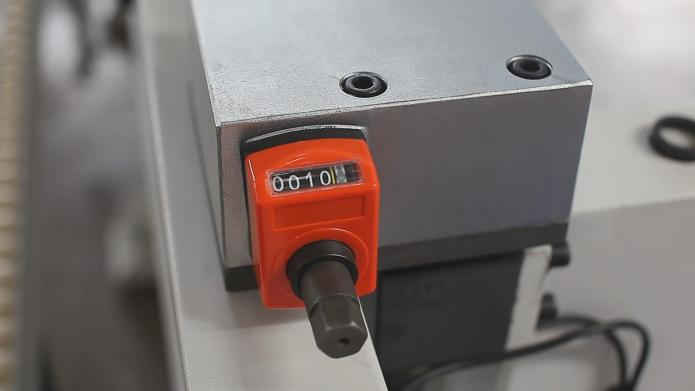

 | Rough trimming
Using two 1.1kw increased power motors, it cuts the upper and lower
edges of the edge banding strip quickly and neatly to make the edge
banding effect better. |
 | Fine trimming
Cutting and shaping the excess edge on the upper and lower panel
and trimming into an R-angle shape, the upper and lower edges will
be flat to the panel and smooth. |
 | Corner rounding
The corner rounding (chamfering) makes the four corners of the
panel round and beautiful. |
 | Scraping
Remove the knife marks left by the trimming knife and ensure the
edge surface smooth and beautiful. |
 | Cleaning device
Dilute the residual glue and make it easier to clean. |
 |
Buffing
Erasing excess glue marks,it makes the edge banding smoother and
cleaner. |
 |
Harden geared motor
4.0kw power, stable operation. |
 | Unique design: Rubber-clad wheel
The front and rear auxiliary rollers are equipped with
rubber-covered rollers to prevent scratches. |
 | For panel thickness 9mm Narrow end width ≥45mm. Machining with the single pre-milling cutter, it can machine width
≥45mm. |
