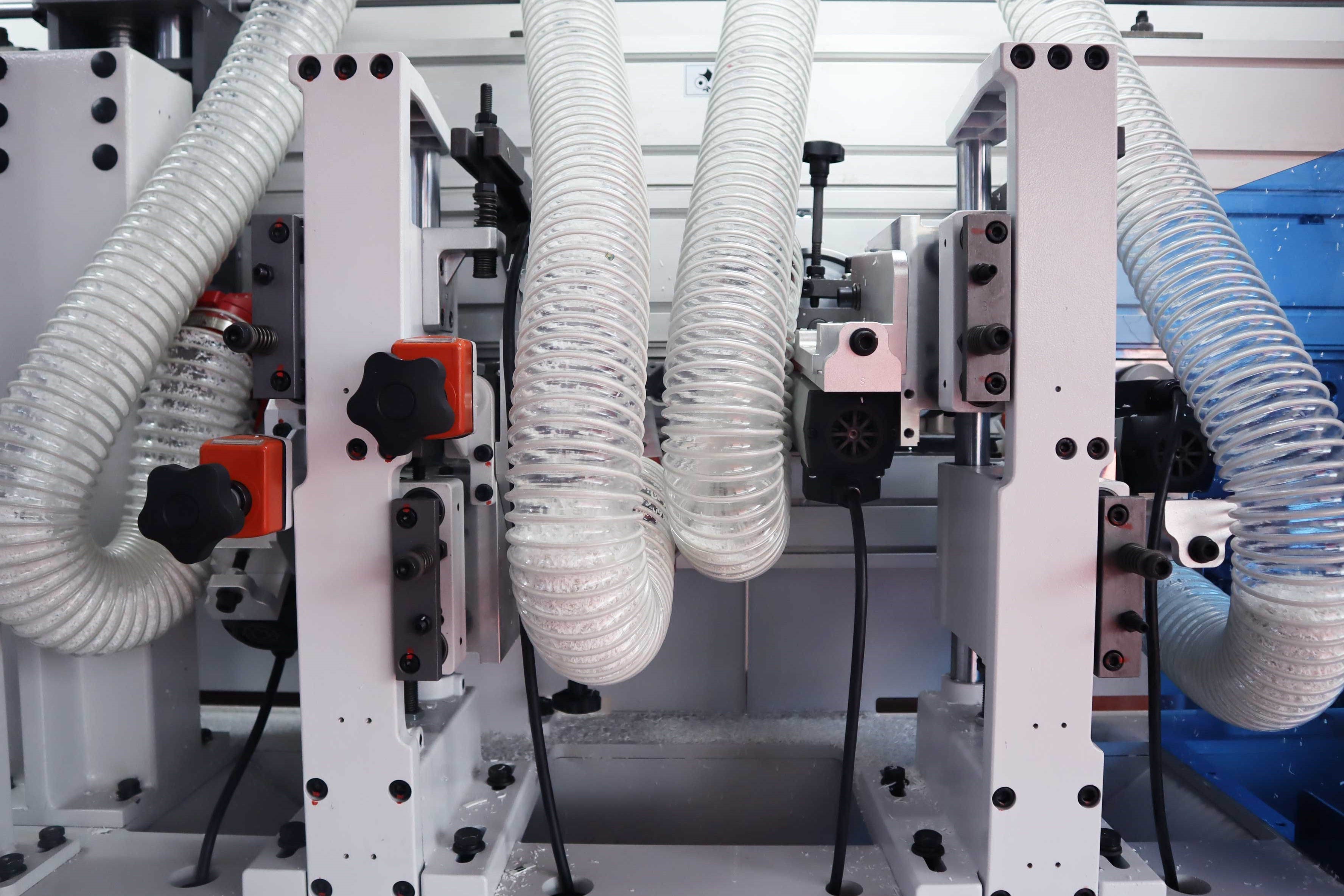

High-Speed Linear Edge Bander HQ520
Features:
1. Proprietary technology: Consolidated two up-gluing units, and
independent pre-melting glue pots
2. Complete new design, heavy loading base, the chain's rail was
completely welded to the base, it's different from the traditional
base, so ensure Higher stability when it was processing the panels.
3. Consolidated pressure beam, compared with single pressure beam,
consolidated beam greatly increase the rigidity and strength of the
pressure beams and ensure the stability of the pressure beams
during high-strength operation
Technical specifications:
| Total Power | 20.6KW |
| Beam Type | CNC lifting |
| Overall size | 6790mm*900mm*1750mm |
| Feeding Speed | 14.2-20.3-23.5(m/Min) |
| Edge thickness | 0.4~3(mm) |
| Panel Thickness | 10~60(mm) |
| Panel Length | ≥100(mm) |
| Panel Width | ≥70(mm) |
| Min. Sheet Size | 100*70(mm) |
If want to know more about our products by video, please click the
below link:
More Details:
About our company
One-stop solution for interior furniture equipment and wooden door
equipment
HOLD Machinery was founded in 2004, focusing on the development of
a full range of furniture machinery equipment and wooden door
machinery and equipment, providing furniture and wooden door
enterprises with solutions for whole factory planning and
automatical production lines, providing customers with excellent
quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door
enterprises in more than 40 countries and regions around the world
and has won wide admiration from customers.
FAQ:
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has
many options such as voltage, speed, function, and so on, So it's
hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months.
For the customized model, the delivery time is around 2~3 months.
It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a
competitive price. Welcome to visit our factory at any time.
