Two Spindles CNC Router For Modular Cabinet HK20L
Main feature
1. Welded structure by thick profiled steel, stabilized under high
temperature, ensures minimum distortion, excellent rigidity, and
powerful strength.
2. High power spindle can make the machine working with high
precision and long service time and stable movement. Three spindles
automatic tool change with 6KW air cooling spindle can achieve any
switching operation between the two spindles, to reduce tool
setting time and improve processing efficiency.

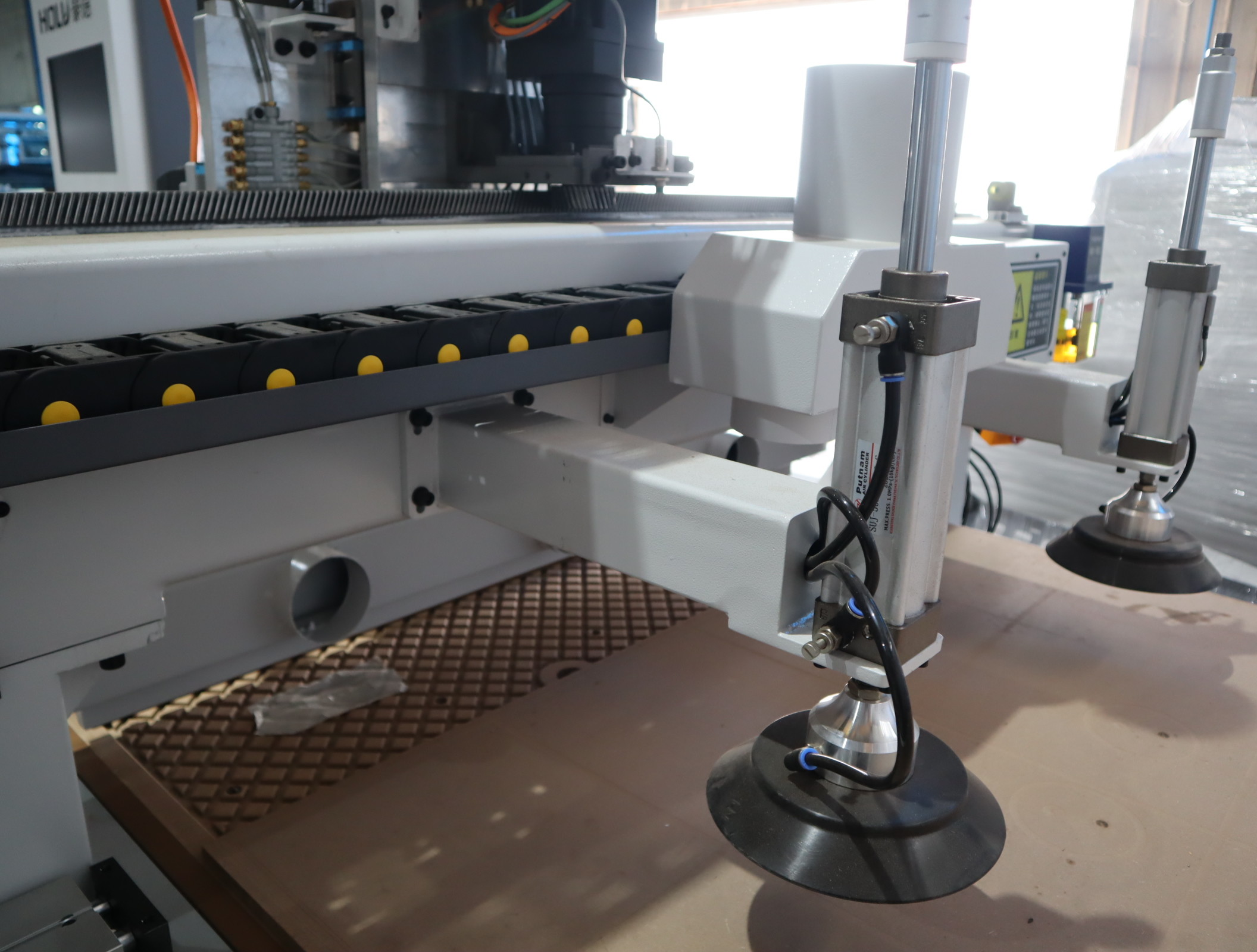

3. Pneumatic mechanism on X-axis and Y-axis, for limiting the
correct working area. Once the right measurement is determined, no
need for the reposition of workpieces later.
4. Optional scanning device, when all designs are made in the
software and printed out by barcode, inexperienced people can
handle the machine and complete works.
5. With a contact roller, load and unload materials are more
convenient.
6. Pneumatic 2-3 spindles, cost-effective as GSM spindle, but can
achieve the same function, most suitable for wooden door and
cabinet production.
Base information
| Total Power: | 18 KW | Overall Size: | 4250*2750*3150mm |
| Input Voltage: | 3P 380V Or Customize | Max. Processing Size: | 1220*2440*50mm |
| Feeding Speed: | 12-25m/min | Spindle: | 6KW * 2 |
| Total Weight: | 2100 KG | | |
Performance characteristic:

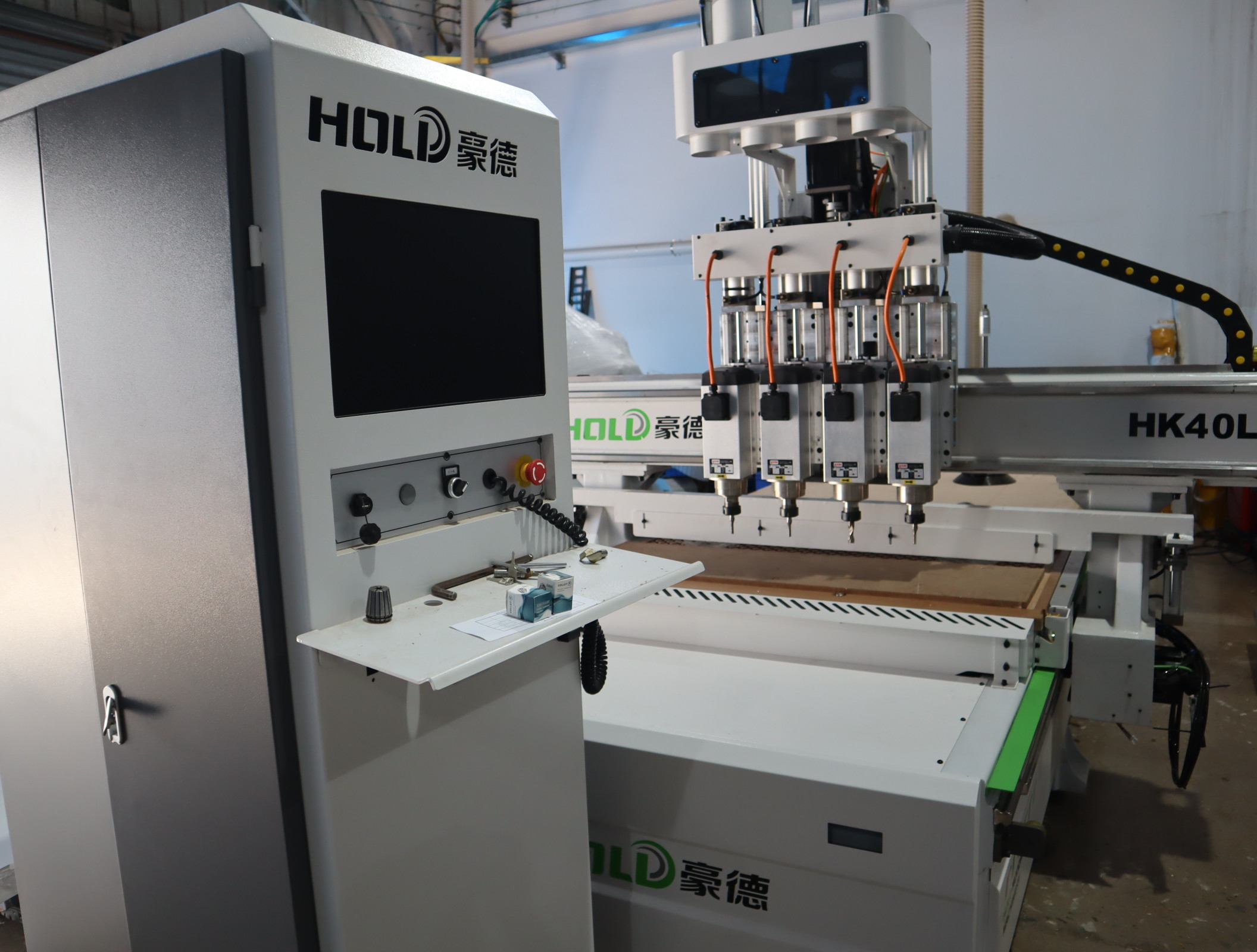

Multi spindles Pneumatic CNC router is mainly applied in the
processing of wooden doors and other wooden products. To shorten
the time of choosing tools and their alignment, a multi-spindles
pneumatic device is quite reasonable when 2 to 3 engraving tools
are needed for different engraving designs and effects. And a
horizontal spindle can be optional chose to process keyhole and
slot so as to improve the precision and processing time greatly.
The professional mechanical design, scientific structure, and
generous appearance.
More video to show the machines, Please see the following link
About our company
One-stop solution for interior furniture equipment and wooden door
equipment
HOLD Machinery was founded in 2004, focusing on the development of
a full range of furniture machinery equipment and wooden door
machinery and equipment, providing furniture and wooden door
enterprises with solutions for whole factory planning and
automatical production lines, providing customers with excellent
quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door
enterprises in more than 40 countries and regions around the world
and has won wide admiration from customers.
FAQ:
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has
many options such as voltage, speed, function, and so on, So it's
hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months.
For the customized model, the delivery time is around 2~3 months.
It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a
competitive price. Welcome to visit our factory at any time.
