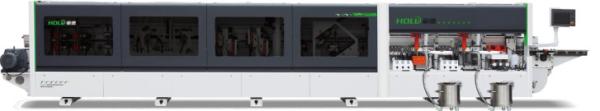

High Speed Edgebanding Machine HD881 for Glass effect 45°
chamfering
Features:
1. The pressure beam is configured with a belt instead of a rubber
roller, the workpiece is stable and without indentation.
2. The machine base was welded by a high-strength structural steel
panel, with high strength and stability, and the surface is
rust-proofed and painted at high temperature.
3. Electrical lifting beam reduces labor intensity and increases
efficiency and accuracy.
4. Double up gluing pot: one set of PUR gluing systems, one set of
EVA gluing systems.
5. Pneumatic control two scraping positions. For two different
thickness strips, one-button switch, easy to solve the trouble of
scraper adjustment.
Specification
| Total Power: | 26.8KW | Overall Size: | 10180mm*1000mm*1800mm |
| Feeding Speed: | 20.43-23.43-26.58(m/Min) | Edge Thickness: | 0.4~3(mm) |
| Panel Thickness: | 10~60(mm) | Panel Length: | ≥120(mm) |
| Min. Sheet Size: | 120*100(mm) | Panel Width: | ≥100(mm) |
| After-sales Service Provided: | Video Technical Support, Field Maintenance And Repair Service,
Field Installation, commissioning And Training | Type: | Automatic Electric |
| Control System: | Delta Inverter, computer Servo Motor, PLC Automatic Control, PLC | Voltage: | 220V/380V/440V/415V |
| Working Pressure: | 0.6Mpa | Pressure Beam: | CNC Lifting
|
More Details:
Technical specifications:
| Total Power: | 26.8KW | Overall Size: | 10180mm*1000mm*1800mm |
|---|
| Feeding Speed: | 20.43-23.43-26.58(m/Min) | Edge Thickness: | 0.4~3(mm) |
|---|
| Panel Thickness: | 10~60(mm) | Panel Length: | ≥120(mm) |
|---|
| Min. Sheet Size: | 120*100(mm) | Panel Width: | ≥100(mm) |
|---|
| After-sales Service Provided: | Video Technical Support, Field Maintenance And Repair Service,
Field Installation, commissioning And Training | Type: | Automatic Electric |
|---|
| Control System: | Delta Inverter, computer Servo Motor, PLC Automatic Control, PLC | Voltage: | 220V/380V/440V/415V |
|---|
| Working Pressure: | 0.6Mpa | Pressure Beam: | CNC Lifting |
|---|
Check the video about the machines
About our company
One-stop solution for interior furniture equipment and wooden door
equipment
HOLD Machinery was founded in 2004, focusing on the development of
a full range of furniture machinery equipment and wooden door
machinery and equipment, providing furniture and wooden door
enterprises with solutions for whole factory planning and
automatical production lines, providing customers with excellent
quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door
enterprises in more than 40 countries and regions around the world
and has won wide admiration from customers.
FAQ:
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has
many options such as voltage, speed, function, and so on, So it's
hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months.
For the customized model, the delivery time is around 2~3 months.
It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a
competitive price. Welcome to visit our factory at any time.
