cnc beam industrial horizontal panel saw

    Buy cheap cnc beam industrial horizontal panel saw from wholesalers

    Buy cheap cnc beam industrial horizontal panel saw from wholesalers
    • Buy cheap cnc beam industrial horizontal panel saw from wholesalers

    cnc beam industrial horizontal panel saw

    Ask Lasest Price
    Brand Name : HOLD
    Model Number : HP330C
    Delivery Time : 45 Days
    Certification : CE
    Price : Negotiable
    Payment Terms : LC/ TT
    Supply Ability : 10 Set / Month
    • Product Details
    • Company Profile

    cnc beam industrial horizontal panel saw

    CNC Sizing Machine HP330C


    Features

    1. Heavy-duty frame, Unique internal structure, optimization software, top-brand spare parts, professional installation workers, intime- after-sale service, This machine surely can highly improve your working efficiency and precision, please contact me now to start your working upgrading!

    2. Integrated touch screen industrial control computer control, easy to operate.

    3. Optimize layout software (k): the computer automatically arranges the plate size, without manual input, plate programming optimization use, convenient and fast, improve work efficiency, easy production management.

    Label printer: print bar code or two-dimensional code, transmit data through a computer, and connect with Bill splitting software.


    Quick Detail

    ModelHP330C
    Cutting length3250mm
    cutting width3250mm
    Maximum height of saw blade95mm Intelligent lifting
    Main saw blade400x4.4x75x72T
    Grooving saw blade160x4.4/5.4x45x24T
    Forward speed of saw truck5-100m/min
    Return speed of saw block0-100m/min
    Forward speed of manipulator0-100m/min
    Return speed of manipulator0-100m/min
    Side pressure devicePneumatic sidewall
    Main saw shaft motor power15kw
    Motor power of grooving saw shaft2.2kw
    Saw servo motor1.5kw
    Feeding servo motor1.5kw

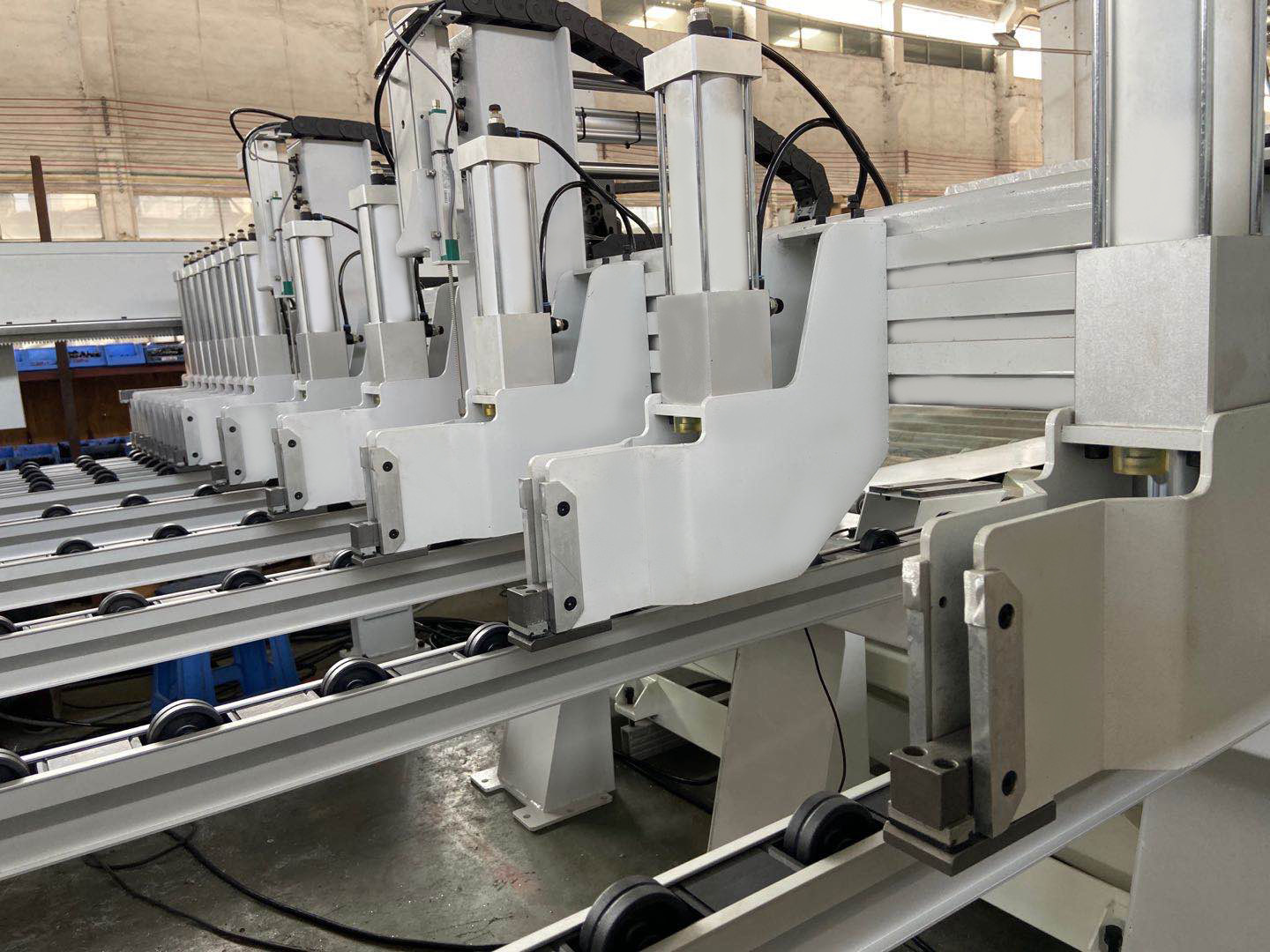

    Number of manipulators8pcs
    High pressure fan of air bearing platform2.2kw
    Size of rear feeding platform-
    Package size

    5400x1350x1900mm

    4600x920x1000mm

    Floor area of machinery6500x5500x1890mm
    Weight listAbout 4500kg
    Minimum sheet size70x28mm
    Total power22.5kw

    More detail


    cnc beam industrial horizontal panel sawcnc beam industrial horizontal panel sawcnc beam industrial horizontal panel sawcnc beam industrial horizontal panel saw


    If want to know more about our products by video, please click the below link:


    cnc beam industrial horizontal panel saw



    About our company


    One-stop solution for interior furniture equipment and wooden door equipment

    HOLD Machinery was founded in 2004, focusing on the development of a full range of furniture machinery equipment and wooden door machinery and equipment, providing furniture and wooden door enterprises with solutions for whole factory planning and automatical production lines, providing customers with excellent quality, efficient and stable products, and high-quality service.

    HOLD Machinery has served the majority of furniture and wooden door enterprises in more than 40 countries and regions around the world and has won wide admiration from customers.


    FAQ:

    1. Do you have the machine in stock?
    Sorry, we don't have the machine in stock, edge banding machine has many options such as voltage, speed, function, and so on, So it's hard to prepared samples.

    2. How long is your delivery time?
    For our standard model, the delivery time is around 1.5~2 months. For the customized model, the delivery time is around 2~3 months. It depends on the client's project and quantity.

    3. Do you have a factory?
    Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
