High Speed laminated boards Edge Bander HD871JKQ
Features:
1. This edge bander is ideal for building an automatic production
line. Stability and control ability are the most important factors
for equipment to be part of the production line.
2. Pre-milling equipment with double trim-blades works on the wave
effect that is caused by a precise saw.
3. The glue mechanism adopts a special structure to gelatinize the
plates and coating materials uniformly, ensure a more solid
conglutination.

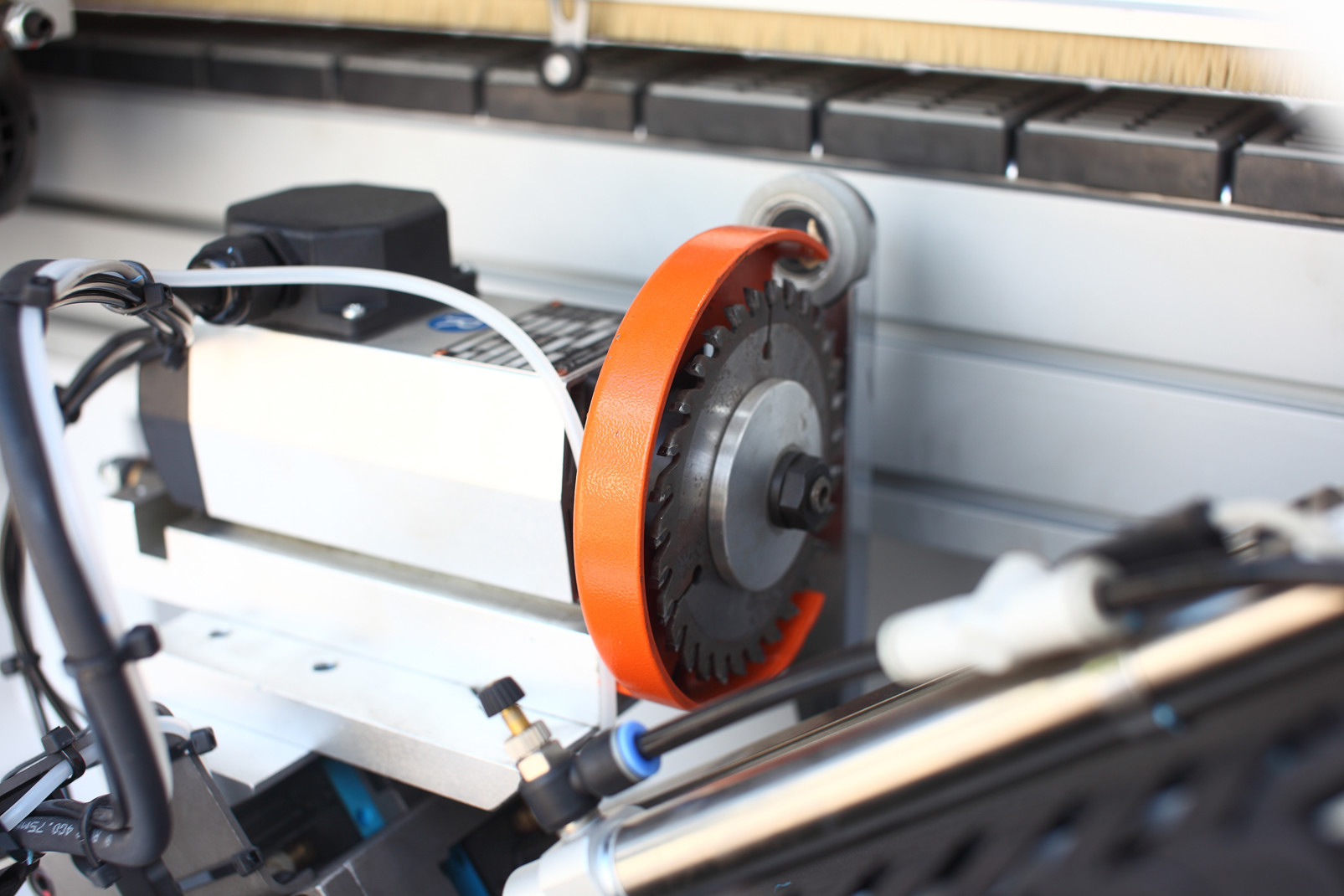

4. End-trimming mechanism through a precise guide track movement,
adopt automatic tracking and high-frequency motor fast cutting
structure to ensure the cutting surface smoothly.
5. Rough &Fine Trimming unit, with two individual
high-frequency motors, trim the exceeding edge on the top and
bottom side of the panel, ensure the top and bottom side of the
edge smooth and even.
6. Corner trimming unit, the upper and lower rounding device can
make the end surface of the plate more smooth and beautiful.
7. Scraping unit for a perfect finishing of the applied edge.
8. The buffing device adopts the board processed by the cotton
polishing wheel, by end-polishing to make a more smooth surface.
More Details:
Technical Informations.
| Total Power: | 26.2KW | Overall Size: | 10270mm*1000mm*1800mm |
|---|
| Feeding Speed: | 20.16-23.05-26.1(m/Min) | Edge Thickness: | 0.4~3(mm) |
|---|
| Panel Thickness: | 10~60(mm) | Panel Length: | ≥120(mm) |
|---|
| Min. Sheet Size: | 120*100(mm) | Panel Width: | ≥100(mm) |
|---|
| After-sales Service Provided: | Video Technical Support, Field Maintenance And Repair Service,
Field Installation, commissioning And Training | Type: | Automatic Electric |
|---|
| Control System: | Delta Inverter, computer Servo Motor, PLC Automatic Control, PLC | Voltage: | 220V/380V/440V/415V |
|---|
| Working Pressure: | 0.6Mpa | Pressure Beam: | CNC Lifting |
|---|
More video about our products
About our company
One-stop solution for interior furniture equipment and wooden door
equipment
HOLD Machinery was founded in 2004, focusing on the development of
a full range of furniture machinery equipment and wooden door
machinery and equipment, providing furniture and wooden door
enterprises with solutions for whole factory planning and
automatical production lines, providing customers with excellent
quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door
enterprises in more than 40 countries and regions around the world
and has won wide admiration from customers.
FAQ:
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has
many options such as voltage, speed, function, and so on, So it's
hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months.
For the customized model, the delivery time is around 2~3 months.
It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a
competitive price. Welcome to visit our factory at any time.
