Six-sided drill HB62

Connection characteristics:

It can be equipped with 2~4 machines by through-type connection. It can be connected to the edge banding machine connection in the front and connected to the sorting system in the back.

2 six-sided boring machines through type connection

The minimum size of the board: 250*50mm

Measure the length of the panel, and close function to sense the coming panel to ensure more accurate panel processing.

More precise:

The lower drilling package has an independent floating platform, and the drilling of the lower processing unit is more accurate;

Stabler:

The overall frame is machined by a precision large gantry machining center. After artificial annealing and aging treatment, long-term use stability is good.

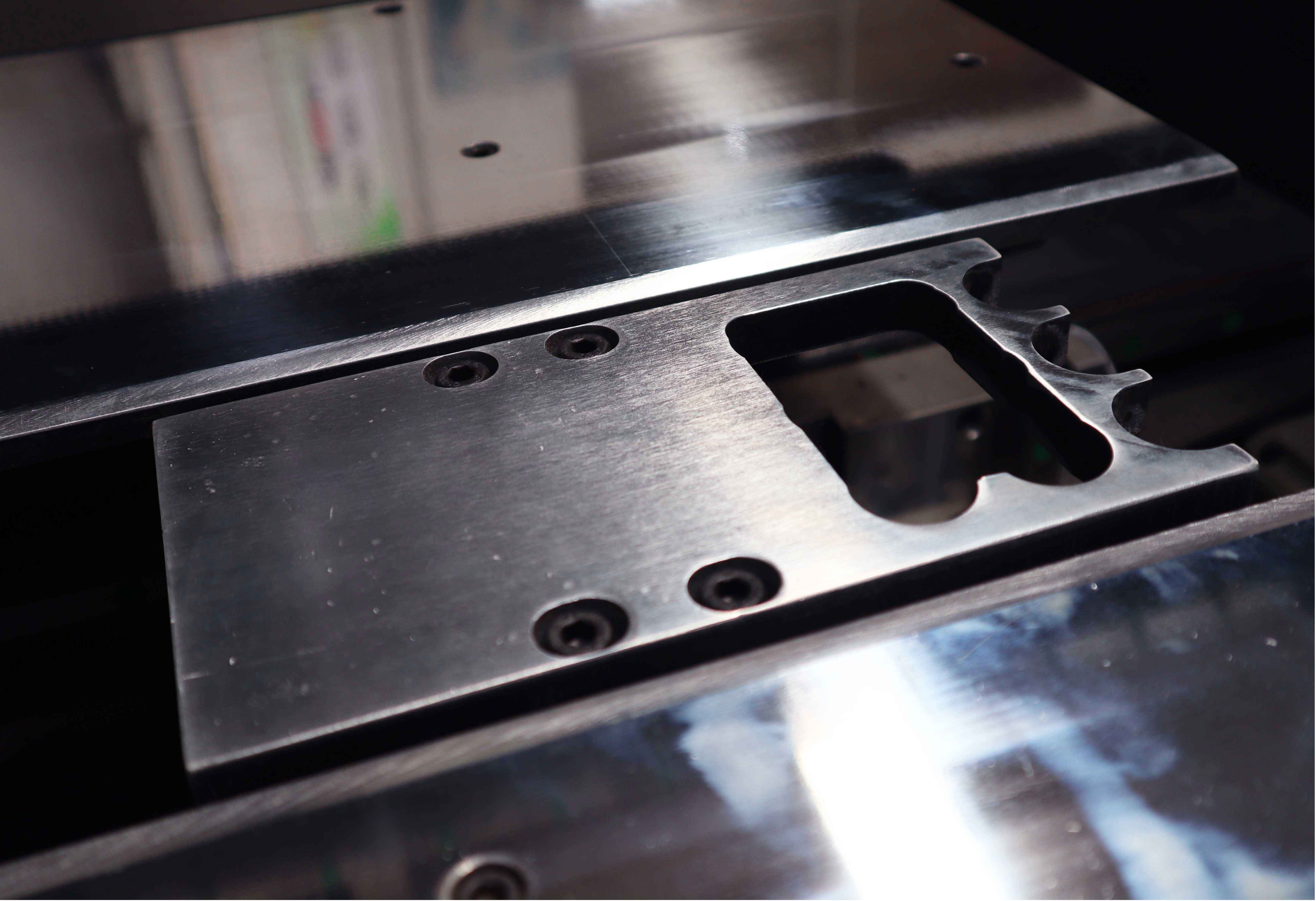

The super-large stabilized gas storage tank makes the working pressure stabler. The precision guide rail is processed as a whole by a large gantry machining center to ensure the stability of operation. The high-precision rack and pinion is a 2M large rack, so the contact surface is large, and the load carrying capacity is strong. Transmission is stable .

Super large pressure-stabilized gas storage tank

ptimal processing:

The overall frame is machined by a precision large gantry machining center. After artificial annealing and aging treatment, long-term use stability is good.

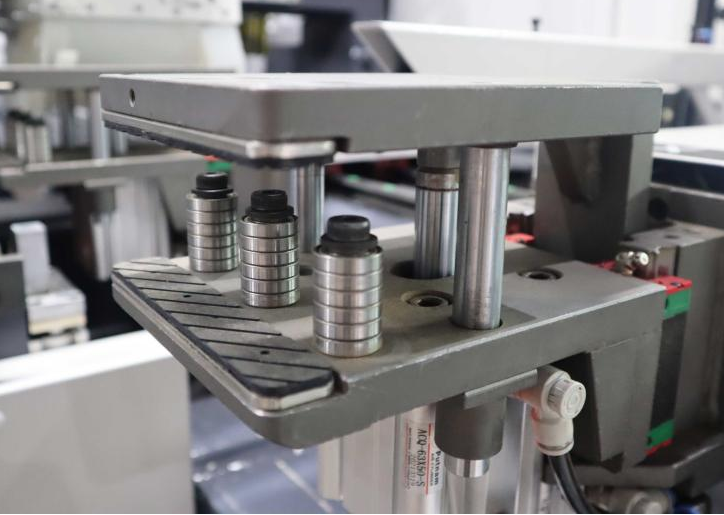

Two clamp hands are controlled by Servo for accurate positioning. When the gripper moves quickly, the lower gripper plate sinks to avoid touching the panel. The gripper is with standard blowing function, which can blow off the dust on the gripper and avoid scratching the panel.

Dust removal and air blowing function: the upper and lower processing units are equipped with an air blowing function, which can blow off the dust of the processed panel and make the panel cleaner.

Dust collection device for each processing part.

More efficient:

Big data analysis, processing statistics, remote service through the network, remote machine update and backup, and bus communication technology can provide various alarm information more conveniently and in detail, and better connect to the alarm interface of the MES system.

It can be connected to the production line, edge bander, and sorting system. Multi-functions are available, such as order production planning, real-time dynamic monitoring, IO control debugging, control system diagnosis, user authority management, work log report. A variety of plans can be customized to maximize production efficiency.

Machining size

Min. machining size

Max. machining size

The main technical parameters

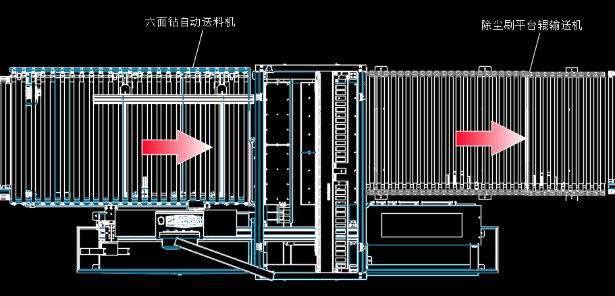

Six-sided drill automatic feeder

The main structure of this equipment adopts European standard aluminum material, which is atmospheric and beautiful.The PTG series adopts a wear-resistant flat belt drive.Suitable for conveying various flat materials, such as cartons, wood, ceramics, etc.The frequency converter can adjust the speed according to different products and different needs so that the products can be conveyed more smoothly and safely.

Technical parameters

Roller conveyor with dust brush.

Technical parameters
