Wooden Furniture Automatic Edge Banding machine 3mm Thick HQ528J NC Beam Lifting

Foshan Hold Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Wooden Furniture Automatic Edge Banding machine 3mm Thick HQ528J NC Beam Lifting from wholesalers

    Buy cheap Wooden Furniture Automatic Edge Banding machine 3mm Thick HQ528J NC Beam Lifting from wholesalers
    • Buy cheap Wooden Furniture Automatic Edge Banding machine 3mm Thick HQ528J NC Beam Lifting from wholesalers
    • Buy cheap Wooden Furniture Automatic Edge Banding machine 3mm Thick HQ528J NC Beam Lifting from wholesalers
    • Buy cheap Wooden Furniture Automatic Edge Banding machine 3mm Thick HQ528J NC Beam Lifting from wholesalers
    • Buy cheap Wooden Furniture Automatic Edge Banding machine 3mm Thick HQ528J NC Beam Lifting from wholesalers
    • Buy cheap Wooden Furniture Automatic Edge Banding machine 3mm Thick HQ528J NC Beam Lifting from wholesalers
    • Buy cheap Wooden Furniture Automatic Edge Banding machine 3mm Thick HQ528J NC Beam Lifting from wholesalers

    Wooden Furniture Automatic Edge Banding machine 3mm Thick HQ528J NC Beam Lifting

    Ask Lasest Price
    Brand Name : HOLD
    Model Number : HQ528J
    Certification : CE
    Price : Negotiable
    Payment Terms : LC/ TT
    Supply Ability : 10 Set / Month
    Delivery Time : 45 Days
    • Product Details
    • Company Profile

    Wooden Furniture Automatic Edge Banding machine 3mm Thick HQ528J NC Beam Lifting

    Edge Bander With NC Control Beam Lifting Suitable For Wooden Furniture: HQ528J

    process
    Wooden Furniture Automatic Edge Banding machine 3mm Thick HQ528J NC Beam Lifting


    New style frame, super heavy duty, integrated rail base, after annealing and process. Rail is installed on integrated base, no suspension, which greatly increasing the stability of the equipment.

    Heightened press beam, compared with traditional press beam, it improves the strength and hardness greatly. It guarantees the stability in high strength operation.

    Full intelligent control system, with 15 kinds of powerful functions, real-time data transmission, real-time checking of equipment status, production report can be obtained with one click.

    Two sets of gluing system for dark and light two kinds of glue one key switch. One upper gluing system + one down gluing system.

    Double rail end cutting+ two sets of pressing

    NC control beam lifting, which reducing labor strength and improve efficiency and accuracy.

    Rough trimming+ two positions fine trimming+ two sets of scraping R1/ R2. Thick and thin tapes can be switched easily which improves efficiency greatly.

    Patent technology: one button switch for panel with/without film scraping. For filmed panel, scraping R2 is equipped with with/without film scraping option.

    The transmission reducer adopts high-efficiency hardened gear surface reducer, which is powerful.

    Equipped with cleaning device and off-cut mechanism.

    ModelHQ528JModelHQ528J
    Beam lifter controlNCPanel thickness10-60mm
    Edge banding thickness0.4-3mmPanel length≥250mm
    Min. panel size250x250mmPanel width≥250mm
    Feeding speed14/20/23m/minWorking pressure0.6Mpa

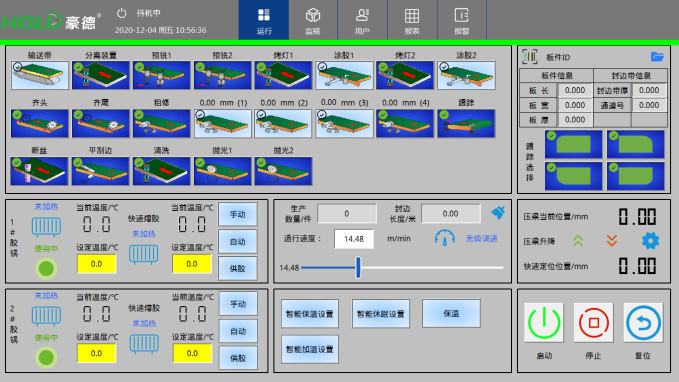

    All intelligent control system
    Wooden Furniture Automatic Edge Banding machine 3mm Thick HQ528J NC Beam LiftingWooden Furniture Automatic Edge Banding machine 3mm Thick HQ528J NC Beam Lifting

    Pre-milling (removing ≤1mm thickness)
    Wooden Furniture Automatic Edge Banding machine 3mm Thick HQ528J NC Beam Lifting

    Gluing one: EVA glue fast melting + upper glue pot gluing system + EVA granule automatic pump
    Wooden Furniture Automatic Edge Banding machine 3mm Thick HQ528J NC Beam Lifting



    About our company

    One-stop solution for
    interior furniture equipment and wooden door equipment
    HOLD Machinery was founded in 2004, focusing on the development of a full range of furniture machinery equipment and wooden door machinery and equipment, providing furniture and wooden door enterprises with solutions for whole factory planning and automatical production lines, providing customers with excellent quality, efficient and stable products, and high-quality service.
    HOLD Machinery has served the majority of furniture and wooden door enterprises in more than 40 countries and regions around the world and has won wide admiration from customers.
    FAQ:
    1. Do you have the machine in stock?
    Sorry, we don't have the machine in stock, edge banding machine has many options such as voltage, speed, function, and so on, So it's hard to prepared samples.

    2. How long is your delivery time?
    For our standard model, the delivery time is around 1.5~2 months. For the customized model, the delivery time is around 2~3 months. It depends on the client's project and quantity.

    3. Do you have a factory?
    Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
