Heavy Duty Edge Bander For High End Cabinet Door: HQ533JA4A4 (With Belt Feeding)

Special for high end cabinet door

1. Q Series heavy duty heightened frame, integrated base

2. Full intelligent control system

3. Change dark and light color glue freely

With two sets of glue pots: 2 sets of glue fast melting device+ 2 sets of upper glue pot

Reserved PUR import connection. With an OPTIONAL PUR injector, it will become PUR+EVA two in one glue pot.

4. One button switch for panel with/without film scraping

For filmed panel, scraping R2 is equipped with with/without film scraping option.

5. Two sets of scraping, special for high end cabinet door

According to the tape thickness to have different R shape, achieving smooth edge.

Cooperating with trimming and buffing to realize perfect effect

Two sets of scraping can be switched freely

6. Thick and thin tapes can be switched easily

Rough trimming+ two positions fine trimming+ two sets of scraping. With visible readout, thick and thin tapes can be switched easily which improves efficiency greatly.

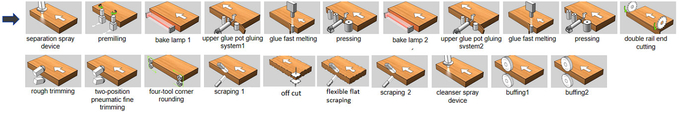

process

• Gluing mechanism: two sets of gluing system + two sets of fast melting system.
• New style frame, super heavy duty, integrated rail base, after annealing and process. Rail is installed on integrated base, no suspension, which greatly increasing the stability of the equipment.
• Heightened press beam, compared with traditional single press beam, it improves the strength and hardness greatly. It guarantees the stability in high strength operation.
• Full intelligent control system, with 15 kinds of powerful functions, real-time data transmission, real-time checking of equipment status, production report can be obtained with one click.
• NC control beam lifting, which reducing labor strength and improve efficiency and accuracy.
• The belt feeding makes the panel stable without indentation, and the adhesion effect is more perfect.
• Panel heating unit + heating unit after gluing.
• Double buffing.
• The transmission reducer adopts high-efficiency hardened gear surface reducer, which is powerful.
• Equipped with cleaning device and off-cut mechanism.
• With flexible flat scraping
• Two rows gantry type rollers.

New designed frame

Pre-milling (within 1mm)


Two sets of fast melter and upper glue pots

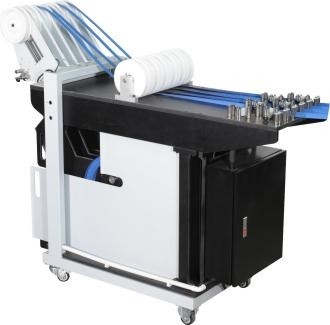

Two sets of four ways tape magazine


About our company

One-stop solution for
interior furniture equipment and wooden door equipment
HOLD Machinery was founded in 2004, focusing on the development of a full range of furniture machinery equipment and wooden door machinery and equipment, providing furniture and wooden door enterprises with solutions for whole factory planning and automatical production lines, providing customers with excellent quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door enterprises in more than 40 countries and regions around the world and has won wide admiration from customers.
FAQ:
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has many options such as voltage, speed, function, and so on, So it's hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months. For the customized model, the delivery time is around 2~3 months. It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
