CNC BORING MACHINE(six-sided) HB62G

Newly upgraded 3.0 version software

1. Optimized test action of cylinder to shorten waiting time.

2. Optimized gripper algorithm to reduce gripper changing.

3. Support XYZ collaboration to reduce Z axis alone working time.

4. Optimized process route for horizontal and vertical holes.

5. Support more M code in same line of NC.

6. The combined efficiency can be improved upmost 20%.

l Machine frame

1. After artificial annealing and aging treatment, long-term use stability is good.

2. Through the overall precision machining of the large gantry machining center, the precision is high

l Main work units

1. The lower drilling package has an independent floating platform to ensure the accuracy of the lower drilling.

2. Super large pressure-stabilized gas storage tank makes the working pressure stabler.

3. Intelligent side aligner system

• Transmission and core components:

• It adopts precision gear rack transmission. The rack precision is DIN6, and it is ground by a precision grinder. High precision, no special refueling and maintenance are required.
• CNC drill package is HOLD brand, and it also adopts high-grade grinding gear transmission with high accuracy.
• Two clamp hands are controlled by Servo for accurate positioning. When the gripper moves quickly, the lower gripper plate sinks to avoid touching the panel. The gripper can be equipped with blowing function, which can blow off the dust on the gripper and avoid pinching the panel.

• Dust collection

1. Each processing part is equipped with dust collector

• Software

1. Drilling simultaneously

2. Slotting up and down simultaneously

3. Two panels mirrored processing

• Supporting DXF file from CAD software.
• Docking order design software, displaying the information of the thickness of the four-sided edges, are convenient for placing panel.
• Supporting simulation function, it can check the processing action in advance to avoid wrong processing.
• Big data analysis, it counts the processing times of each boring head up to the set use times, and prompts to change the boring head.
• Processing statistics function: statistics of the QR code information of each panel, processing start time, end time, time spent, and the time interval for placing panels to facilitate employee performance management.
• The processed and waiting-to-processing files are displayed separately, which is convenient to check whether the processing panel is missing.
• Multi-axis NC system, multi-channel technology. Scanning and processing simultaneously to line up panels waiting for processing, it reduces the time for scanning codes. At the same time, the discharging and processing control adopts multi-channel control technology, so the clamp will return to the receiving position for catching new panel once processed panel discharged.
• The network realizes remote service, remote update, backup, and bus communication technology, which can provide various alarm information more conveniently and in detail, and better connect to the alarm interface of the MES system.

AIR FLOATATION LOADING PLATFORM:



INTELLIGENT SIDE LEANING DEVICE:

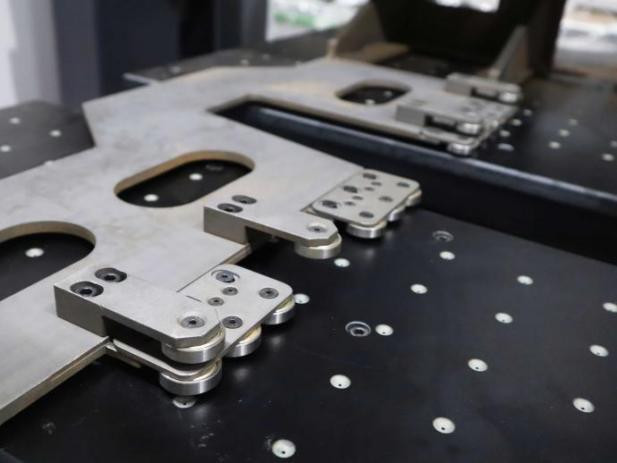

DOUBLE LINKAGE GRIPPER (WITH BLOWING DEVICE):




Super large pressure-stabilized gas storage tank:

• PRECISION RACK:

About our company

One-stop solution for
interior furniture equipment and wooden door equipment
HOLD Machinery was founded in 2004, focusing on the development of a full range of furniture machinery equipment and wooden door machinery and equipment, providing furniture and wooden door enterprises with solutions for whole factory planning and automatical production lines, providing customers with excellent quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door enterprises in more than 40 countries and regions around the world and has won wide admiration from customers.
FAQ:
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has many options such as voltage, speed, function, and so on, So it's hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months. For the customized model, the delivery time is around 2~3 months. It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
